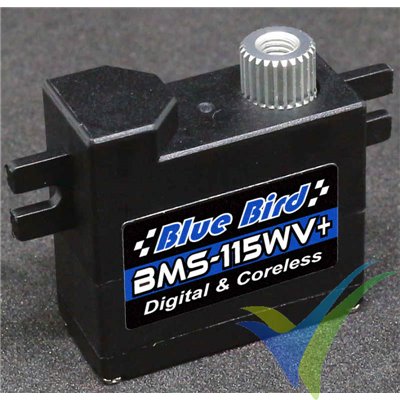

Blue Bird BMS-115WV+ digital servo, 11.5g, 7.1Kg.cm, 0.09s/60º, 3.7V-8.4V
Blue Bird BMS-115WV+ digital servo, 11.3g, 7.1Kg.cm, 0.09s/60º, 3.7V-8.4V
VV0284
New product
Warning: Last items in stock!
- Share :
This servo is often used in electric 3D aerobatics, F5J gliders, F3K gliders, indoor F3P, DLG and HLG gliders
Specifications
| Torque at 3.7V | 3.6 Kg-cm |
| Torque At 6.0V | 4.3 kg-cm |
| Torque At 7.4V | 5.5 kg-cm |
| Torque At 8.4V | 6.2 kg-cm |
| Speed at 3.7V | 0.20 sec / 60º |
| Speed At 6.0V | 0.13 sec / 60° |
| Speed At 7.4V | 0.10 sec / 60° |
| Speed At 8.4V | 0.09 sec / 60° |
Power Supply
| Operating Voltage Range | 3.6V ~ 8.4V ( 4 ~ 6 Cell Ni-MH or 1S-2S Li-Poly / 2S Li-Fe ) |
Micro Servo
| Control System | Digital Controller 12-Bits ( 4096 Steps ) / Frequency：250Hz / Neutral：1520us |
| Dead Band Width | 0.002ms ( 2us ) |
| Frame Rate (Signal repeat rate) | 3ms ( Maximum ) [ EX：Futaba-4PX / Sanwa-M12 ] |
| Rotating Direction | Clockwise / When Pulse Traveling 1500 ~ 2100us |
| Operating Travel | 90° (When 1100 ~ 1900 μ sec) |
Mechanical Specifications
| Ball Bearing | 2 |
| Gear | All Metal Gears |
| Motor | Coreless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as Futaba ) |
| Connected Cable Length | 150 mm ( 5.9 in ) |
| Connected Housing | Universal Connector ( J-Type ) |
Physical Specifications
| Dimension (mm) | 23.2 x 10 x 23 mm |
| Weight (gram) | 11.0 ± 0.5 grams |
