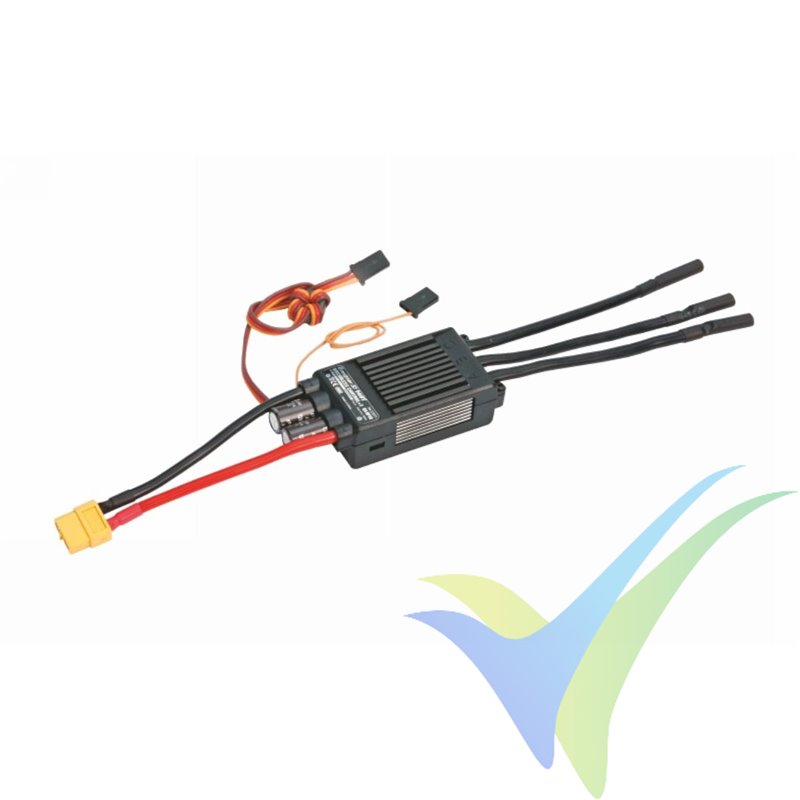

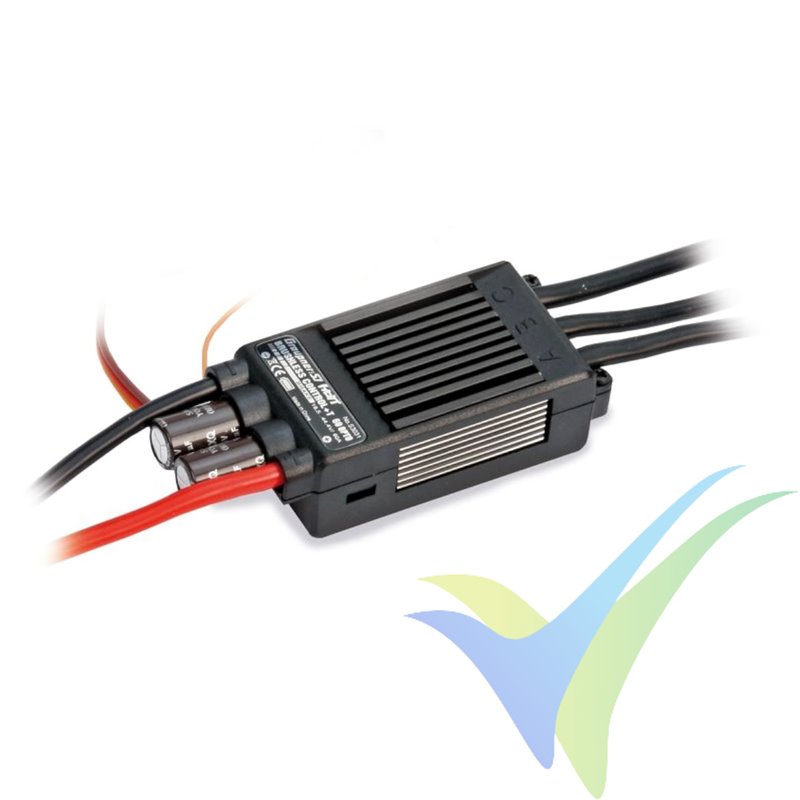

Graupner CONTROL +T60 ESC, 60A, 5S-12S, OPTO, 116g

More details

Brand : Graupner

Reference: GRS3031

Condition : New product

Warning: Last items in stock!

More info

Speed controller for brushless motors with internal HoTT telemetry functions:
Easy programming via your HOTT transmitter MX-12 to MX-20, MC-16 to MC-32, MZ-12 to MZ-24 or the telemetry box.
Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity

Functions:

Optocoupler
Transmission paths can be programmed easily
Graupner HoTT telemetry for easy controller programming
Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity
For 2 poles motors maximum 180.000 rpm

Programming options and telemetry:

Battery type NiCd/NiMH/LiIo/LiPo/LiFe
Cut-off voltage
Power curve soft/hard
Direction of rotation
Motor timing
Ramp-up time
Starting torque
Brake on/off
Reverse mode for boat/car/ on/off
Speed control mode for helicopter on/off
Readjustment speed in speed control mode
Number of motor poles in motor
Gear reduction ratio
Telemetry warnings:
Undervoltage limit
Maximum current
Minimum speed
Max. temperature
Max. capacity
Telemetry display:
Current voltage
Current and maximum current
Current and maximum speed
Current and maximum temperature
Capacity

Technical information

Dimensions with capacitor :	87 x 36 x 21
Battery plug connection:	XT-60 (D3,5)
Operating voltage neutral [V] :	18,5 - 44,4
Width [mm]:	36
Max. continous current [A]:	60
EMK brake:	programmable
Weight incl. leads [g]:	116
Height [mm]:	21
Overall length [mm]:	87
Max. continous current [A]:	60
Reverse:	programmable
Soft start :	programmable
Pulse frequency [kHz]:	32
Type:	Opto
Cell count, LiPo, Lilo, LiFe:	5 - 12
Cell count NiMH:	12 - 30
