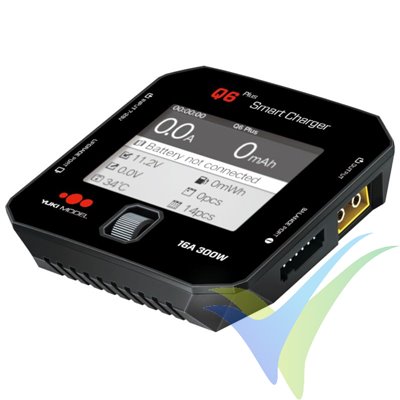

YUKI MODEL Smart Charger Q6 Plus 7-28V DC 300W 1S-6S 16A colour LCD
YUKI MODEL Smart Charger Q6 Plus 7-28V DC 300W 1S-6S 16A colour LCD
YM700317
New product
- Share :
Also suitable for HV LiPo batteries (4.35 V/cell)
The charger can be powered by the car battery or a similar power source with 7-32V DC. In steps of 0.1A, the charging current can be selected from 0.1 to 16A at max. 300 W charging power. The discharge current is at max. 8W and can be selected from 0.1 to 3A. An integrated balancer adjusts the individual cell voltages of lithium batteries with up to 1A to each other. Batteries with up to 18 nickel or six lithium cells (including HV LiPo batteries) and lead batteries with up to twelve cells can be charged. A special feature is the 2.4" IPS LCD with 320 x 240 pixels and around 262.000 colors. It allows reading at an angle of up to 178 °. The charger has dimensions of 80 x 80 x 33.5 mm, weighs 119g and has a housing made of impact-resistant plastic.
| Dimensions: | 80 x 80 x 32mm |
| Input voltage (DC): | 7-28V |
| Weight: | 120g |
| Charging power: | max. 300W (@ min. 21V) |
| Discharging power: | max. 5W |
| Charging current: | 0.1-16.0A |
| Discharging current: | 0.1-3.0A |
| Balancing current: | max. 1.0A |
| LiPo/LiHV/LiFe/Li-Ion: | 1-6S |
| Pb: | 2-24V |
| NiCd/NiMH: | 1-16S |
